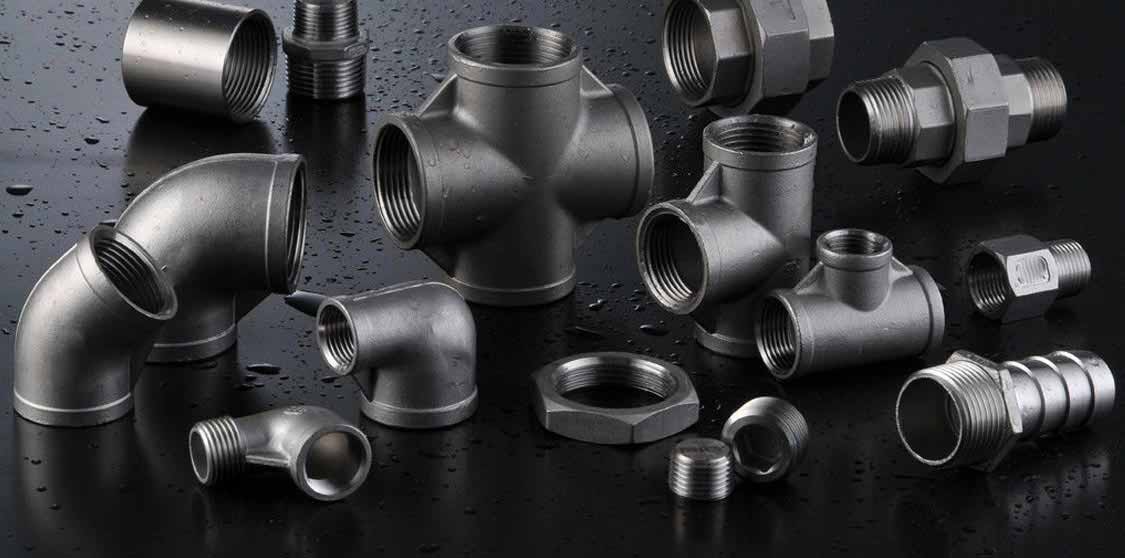

Max steels also stocks and supplies a complete range of SS 347/347h Forged Fittings. These are supplied in customized lengths and machined to meet customers' fitting requirements. The SS grade is similar to other steel grades but has slightly improved corrosion resistance, mostly in the reducing environment. These are offered in different shapes such as reducer, cross, stub bends, tee, elbow or others. These are a common type of austenitic steel containing columbium that is mostly used in high-temperature applications. The SS grade is magnetic and non-magnetic. The ASTM A182 Stainless Steel 347H Forged Fittings has excellent forming and welding attributes and is widely used in industrial applications. Increasingly, the strong structure of the forged fittings allows use in heating applications. Pitting and crevice cracking resistance properties are ideal for impact loading conditions. SS forged fittings have a larger tolerance limit and machining allowance with low costs. Stainless steel grades can be annealed with the slow austenitic process. Thus, the durability and functionality of the product are enhanced. The advanced machining and forging process develops a higher range of precise dimensions.
Different tests are conducted to optimize the certainty of the product. The tests are as follows-tensile tests, mechanical tests, chemical tests, PMI tests, intergranular corrosion tests, pitting corrosion tests, radiographic tests, and visual inspection tests. Third-party inspection tests ensure the quality of the product. SS 347/347h forged fittings are delivered in the standard packing of wooden boxes, crates, pallets, or cartons. Suppliers ensure that none of the damaged products reach your doorstep.
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 347 | 1.4550 | S34700 | SUS 347 | X6CrNiTi18-10 |
| SS 347H | 1.4961 | S34709 | SUS 347H | X12CrNiTi18-9 |
Specifications : ASTM A182 / ASME SA182
Dimensions : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8" NB to 4" NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End - 2000 /3000/ 6000 LBS. Socket-weld End - 3000 / 6000/ 9000 LBS.
ASTM A182 / A182M - Standard Specification for Forged Fittings, and Parts for High-Temperature Service
ASME B16.11 - This Standard covers ratings, dimensions, tolerances, marking and material requirements for socket-welding and Threaded Forged Fittings.
MSS SP-83 - Class 3000 and 6000 Pipe Unions, Socket Welding and Threaded (Carbon Steel, Alloy Steel, Stainless Steels, and Nickel Alloys)
MSS SP-95 - This Standard Practice covers dimensions, finish, tolerances, marking, and material for carbon steel and alloy steel Swaged Nipples (male end reducing fittings), NPS 1/4 through NPS 12 and Bull Plugs (hollow or solid male closures) NPS 1/8 through NPS 12.
BS3799 - Specification for Steel pipe fittings, Screwed and Socket-welding for the petroleum industry
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 - 19.00 | 0.10 max | 9.00 - 12.00 | 5(C+N) – 0.70 max |
| SS 347H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 - 19.00 | 0.10 max | 9.00 - 12.00 | 4(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
